Description

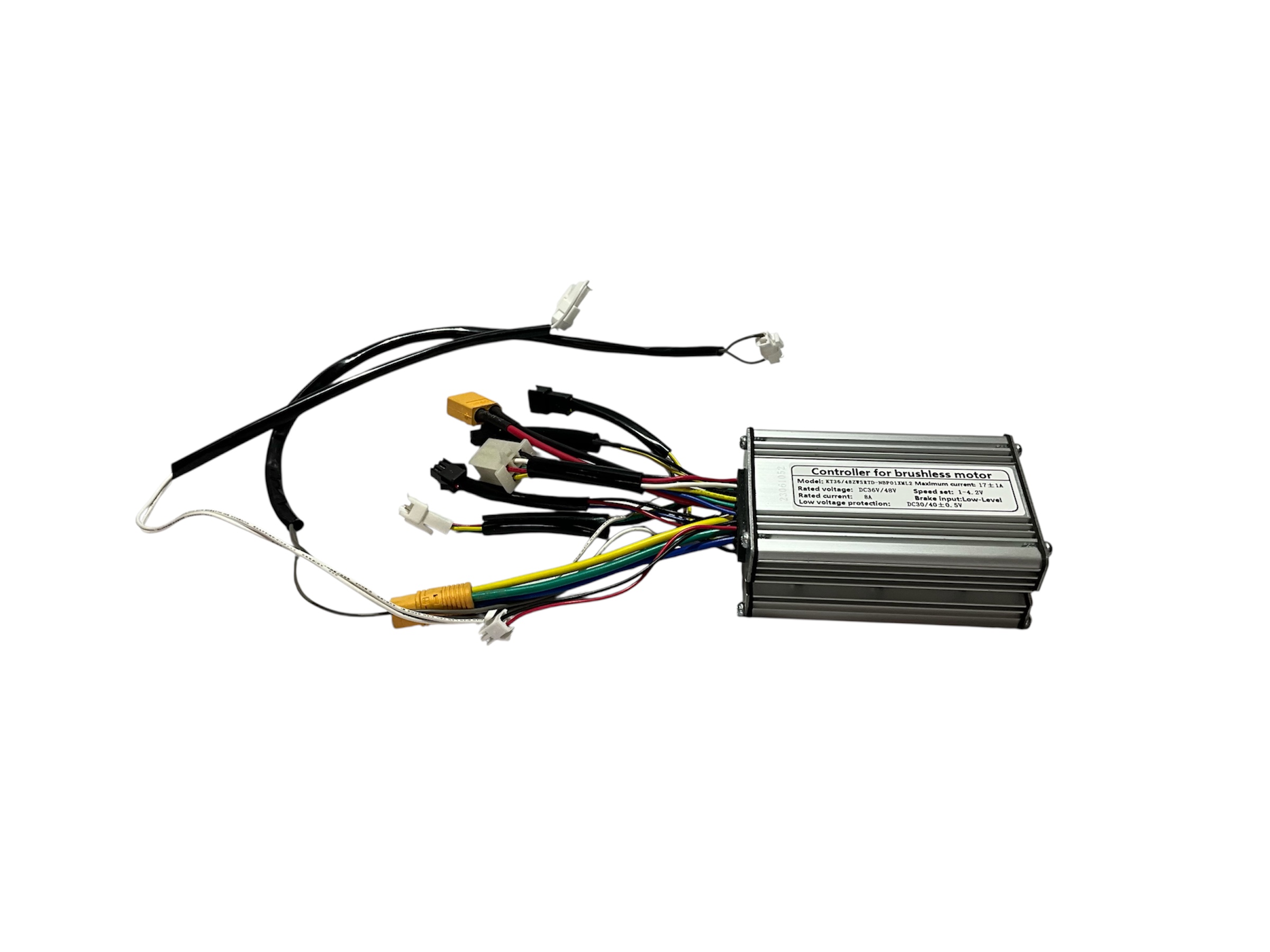

36V/48V 17A Brushless DC Square Wave Controller Ebike Electric Bicycle
Suitable for a 250w -350w motor
This is sensorless controller, so controller has three big cable and five sensor wires and one speed sensor wire. Because the controller is sensorless it will run with the six hall plug not plugged in so if you have a motor with 3 main phase wire and six hall wires you don’t need to plug the hall plug in ,, if your motor is not running because of a hall sensor fault this controller will still run the motor
KT controller can work with geared or gearless motors
This controller is not compatible with SW900 Display only KT models
Please note that because the controller is sensorless the speedo will take abit to calibrate, once you take it for a ride it will calibrate and work
Product details:
Input Voltage: DC 36V / 48V and 52V the controller doesn’t need to be set to the battery voltage it will automatically read the battery voltage when riding
Min. Voltage: DC30V/40±0.5V
Max. Current: 17±1A
Rated Current: 8A
Speed set: 1-4.2V
Brake Input: Low-Level
Size: 10*7*4cm
Color: Silver
6 pcs stronger MOSFET
Application: Max. 36V/48V

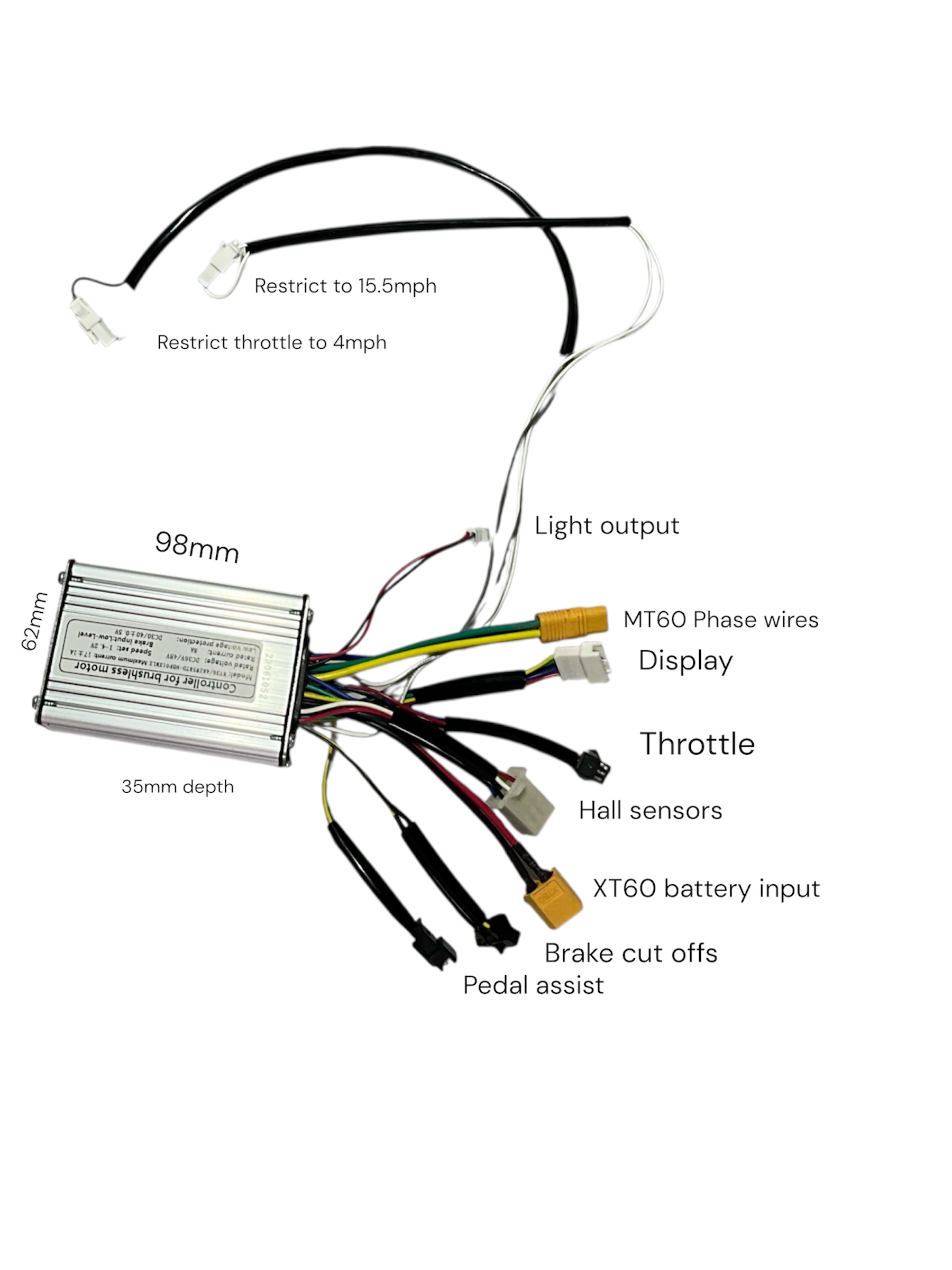

The controller has special UK 🇬🇧 features it has two wire that switches can be added to . One wire restricts the throttle to 4MPH and one restricts the PAS to 15.5 MPH to make the bike TOTALLY 🇬🇧LEGAL
Item Features:
36V /48v / 52v Universal (support both voltage)
This controller can working without the PAS(Pulse Padel Assistant Sensor)
Sine Wave Controller (more stable, high efficiency, low current consumption, long life)
Support hydraudic brake sensor or brake sensor connector
Support LED Control Panel or LCD Control Panel
Support Cruise Function
Support 15.5mph legal limit
Support 4mph throttle limit
Support speaker and led right
Support Regenerative Function (must use our LCD Display together to active this function)
