Description
brushless motor controller double hall (sensor less)

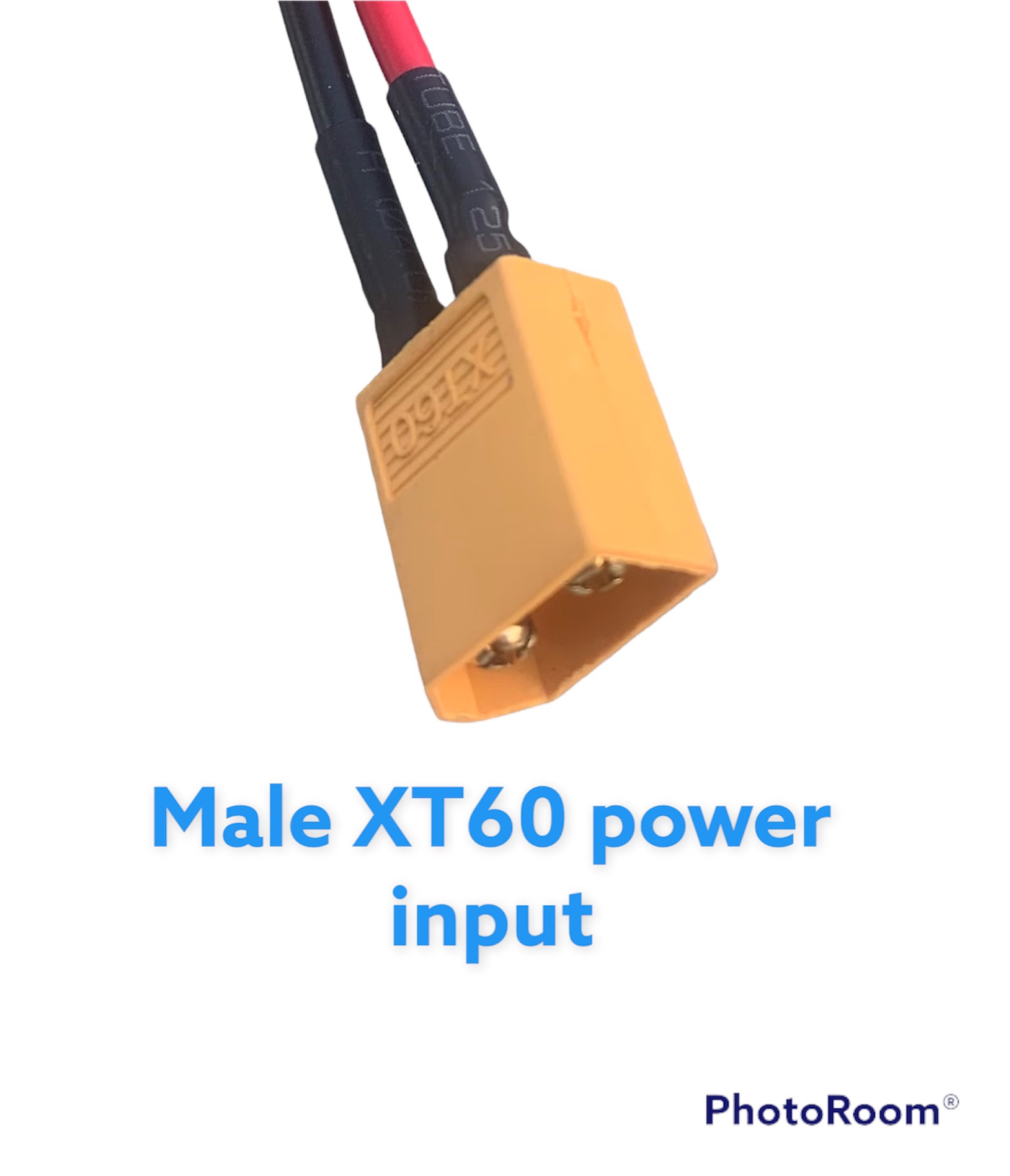

XT 60 BATTERY CONNECTOR
Electric Bike Sensorless Brushless Controller DC 36V/48V 1500W 12-FET 35A KT Torque Simulation Square Wave
This listing is for 1x 12 fet 35A KT torque simulation sensorless brushless controller.

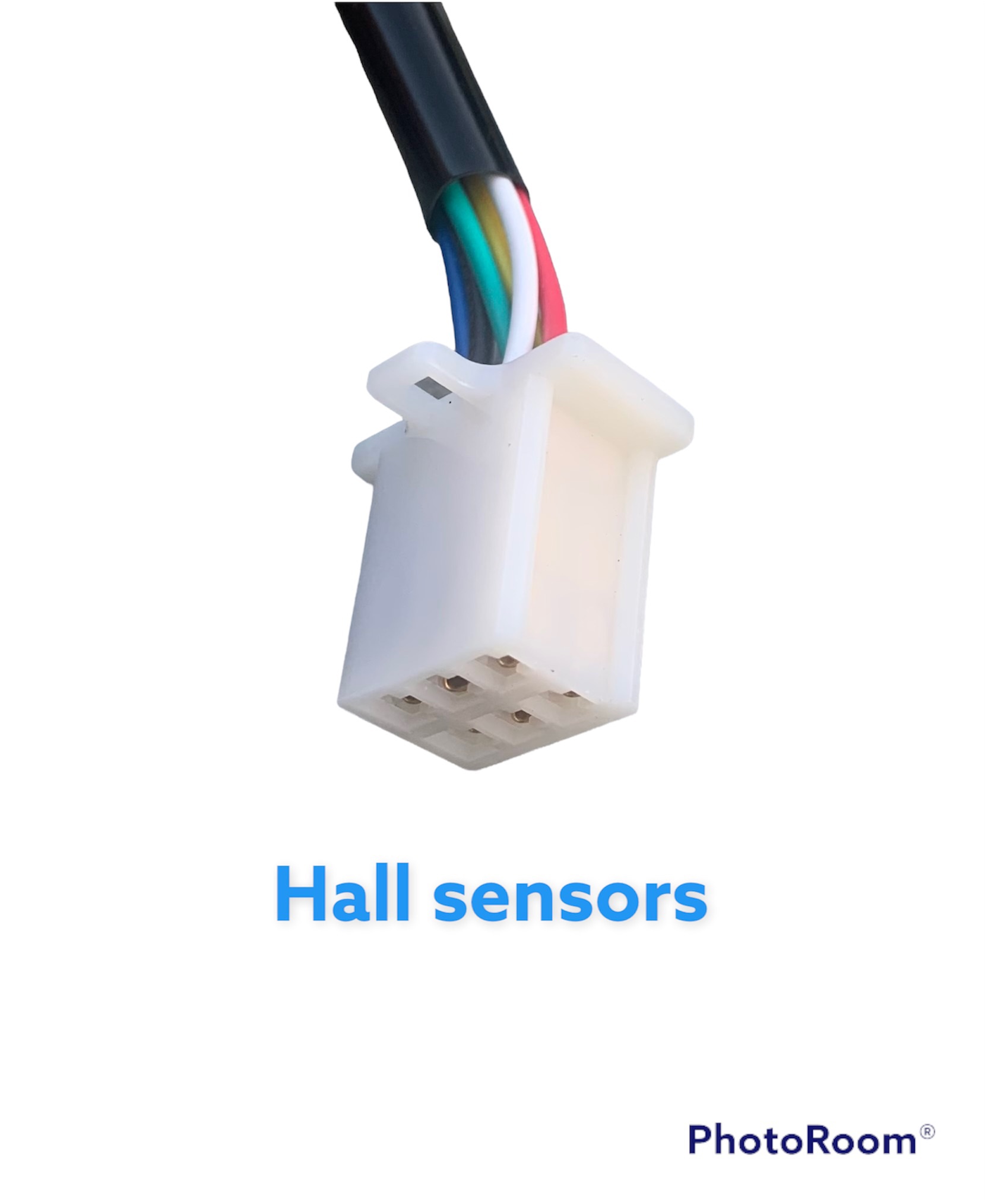

PLEASE NOTE: This is a sensorless brushless motor controller, intended for motors with only 3 wires. If your motor has 8 or 9 wires, it can be used with this controller without the hall sensors connected, by just connecting the 3 thick motor wires.

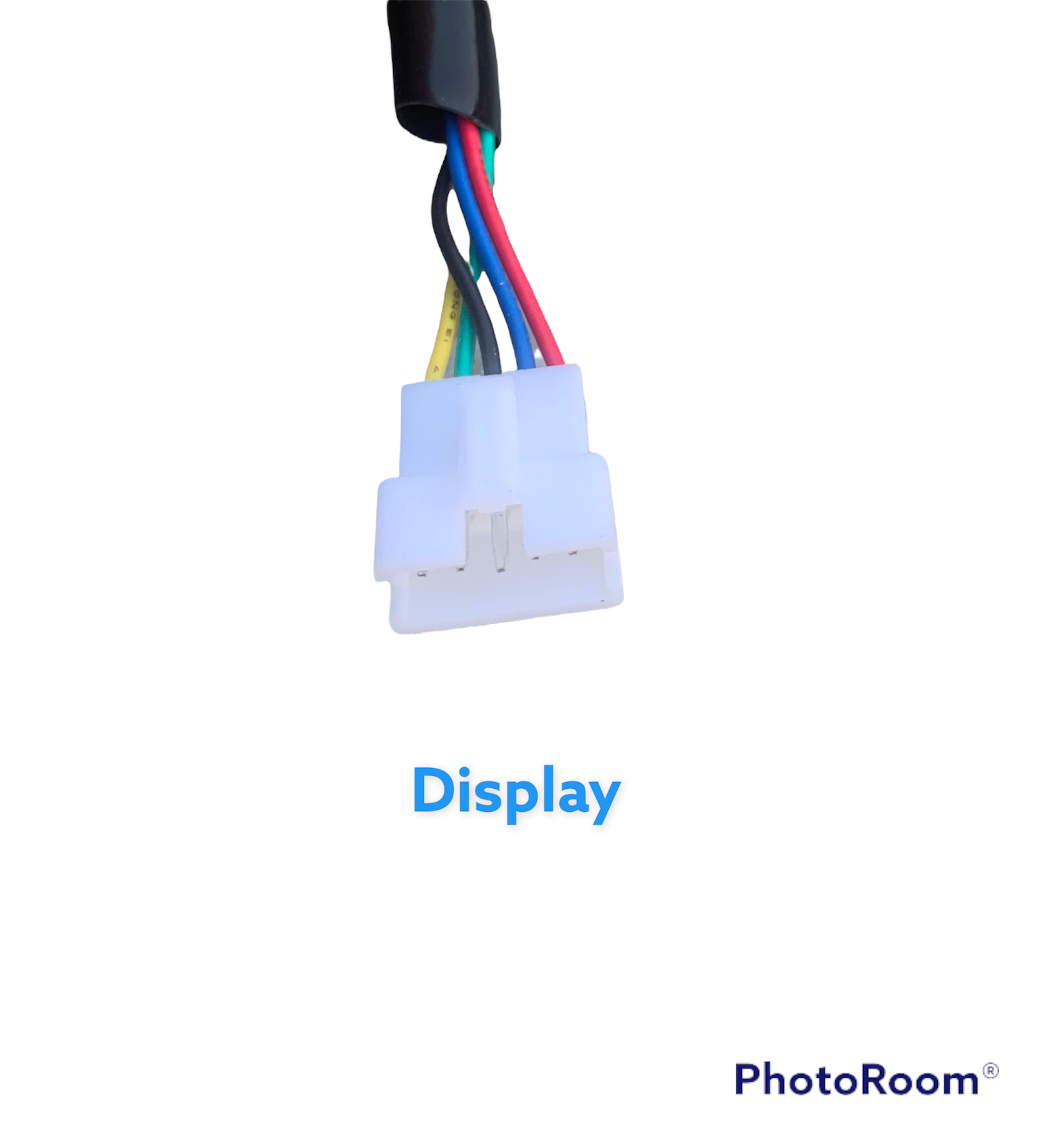

Although this controller can be used without an LCD display, one is required to use its full functionality and access advanced configuration options. I stock the following compatible LCD displays:
Technical Data:
- Model: KT36/48
- Compatible with KT LCD Displays
- Input Voltage: DC 36V or 48V (Universal)
- Min. Voltage: DC30V/40±0.5V
- Max. Current: 35±1A

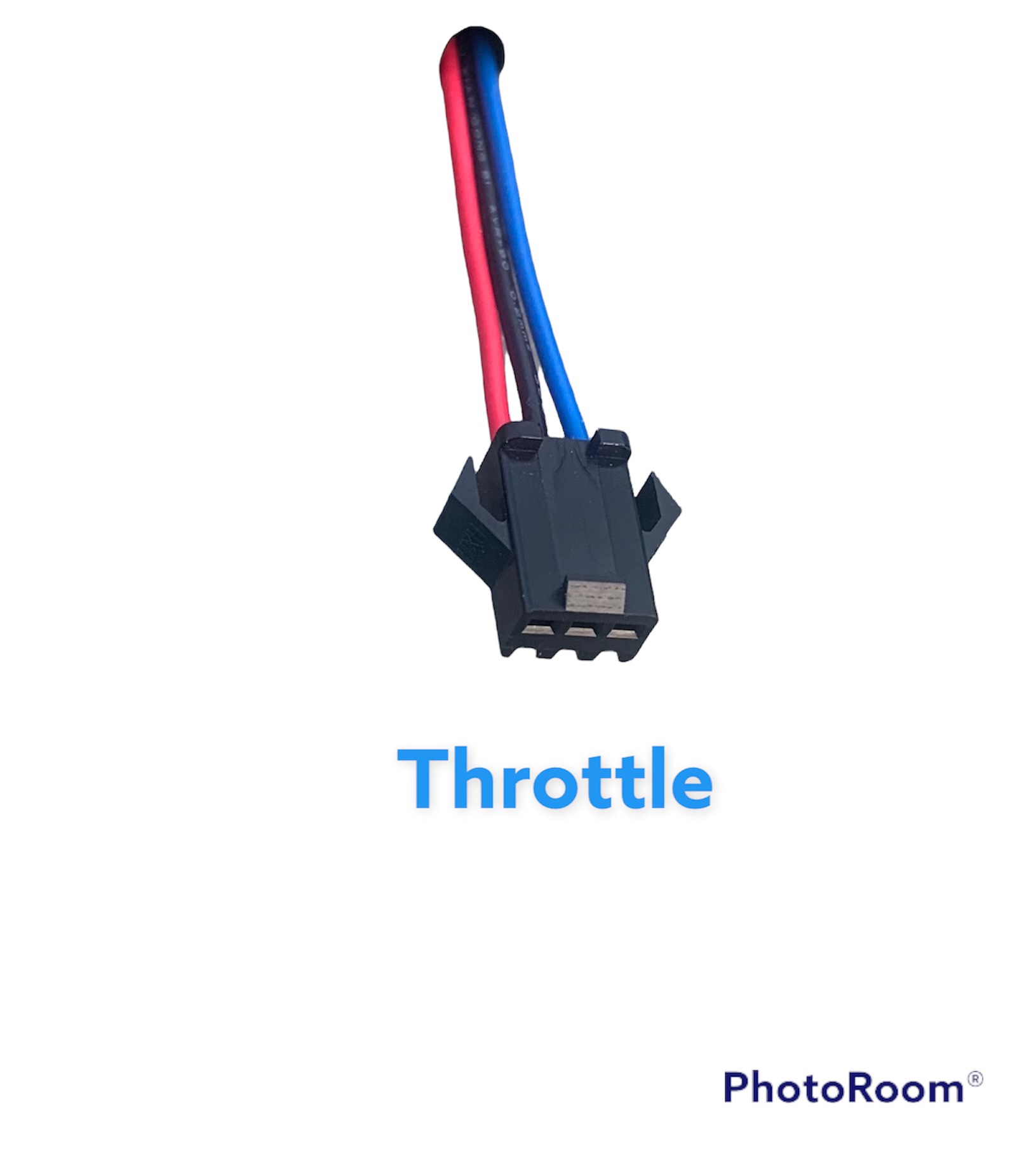

- Speed set: 1-4.2V
- Brake Input: Low-Level

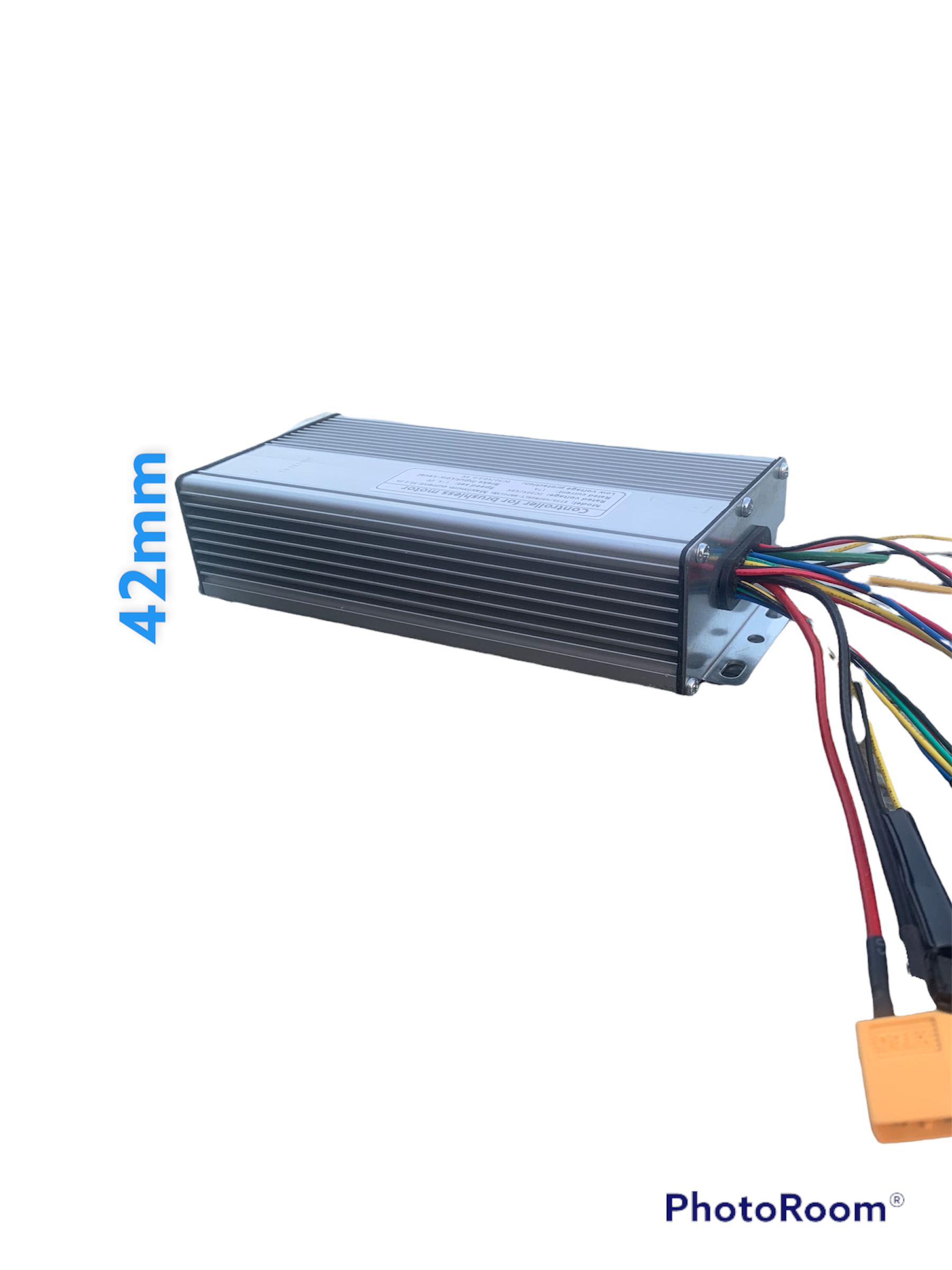

- Size: 193x84x43mm
- Colour: Silver
- Weight: 550g
- 12 pcs MOSFET
- Application: Max. 36V/48V 1000W-1500W
- Fits sensorless motor
Advantages:
- 36V or 48V Universal (supports both voltages)
- This controller functions with & without PAS (Pedal Assist Sensor)

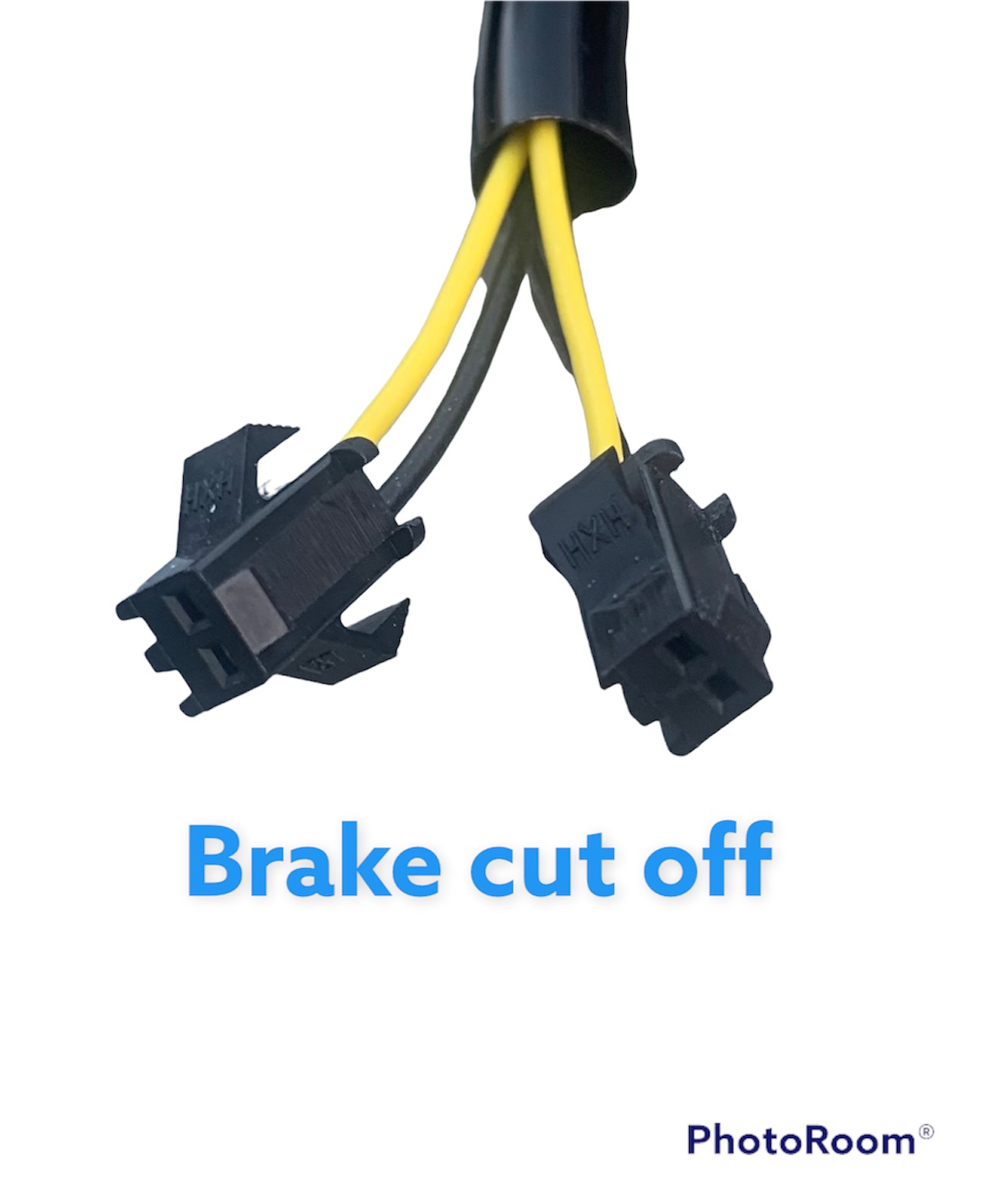

- Support hydraulic brake sensor or brake sensor connector
- Support LED Control Panel or LCD Control Panel

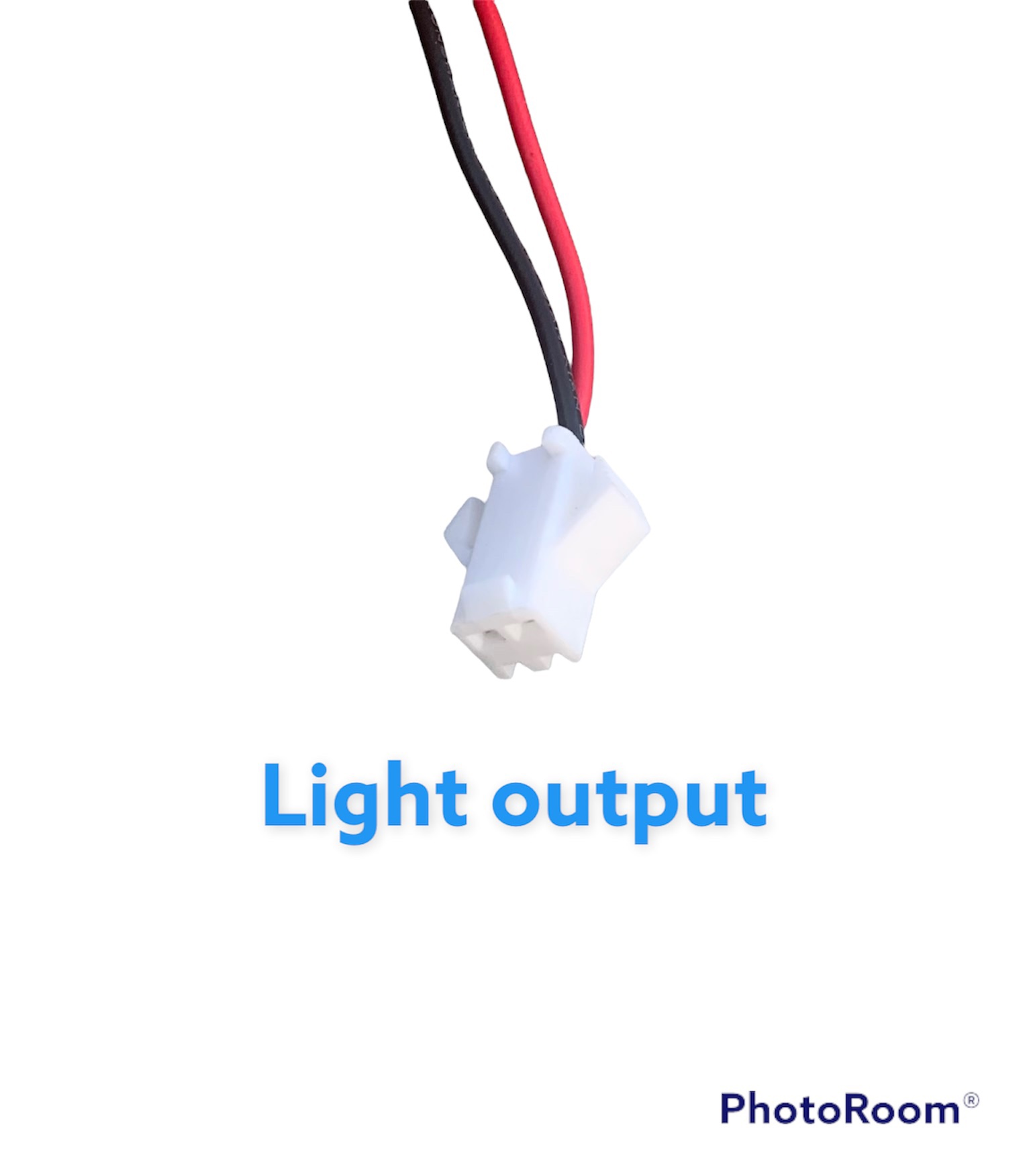

- Support 36V or 48V Light Control
- Support speed limit to 70%
- Support cruise function
- Support speaker and LED light
- Support regenerative braking function (must use our LCD Display together to activate this function)
FREE 1ST CLASS UK POSTAGE
